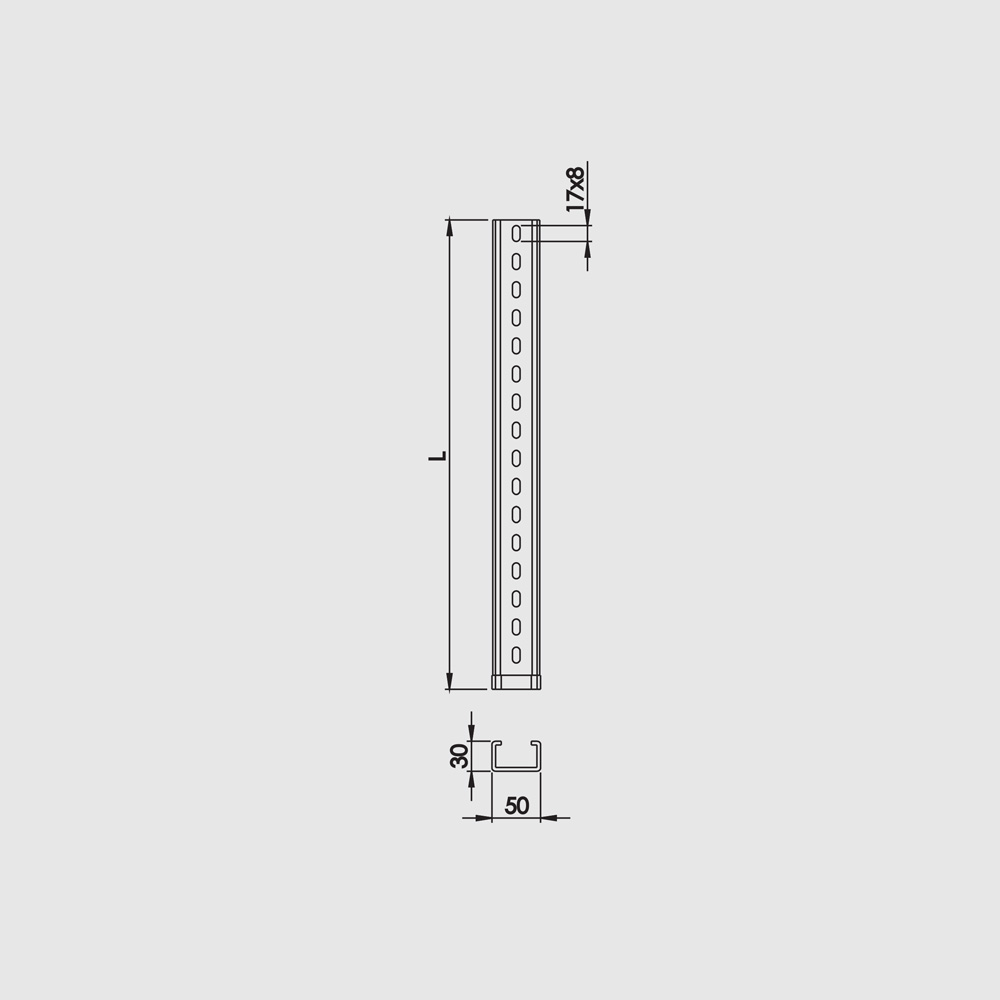

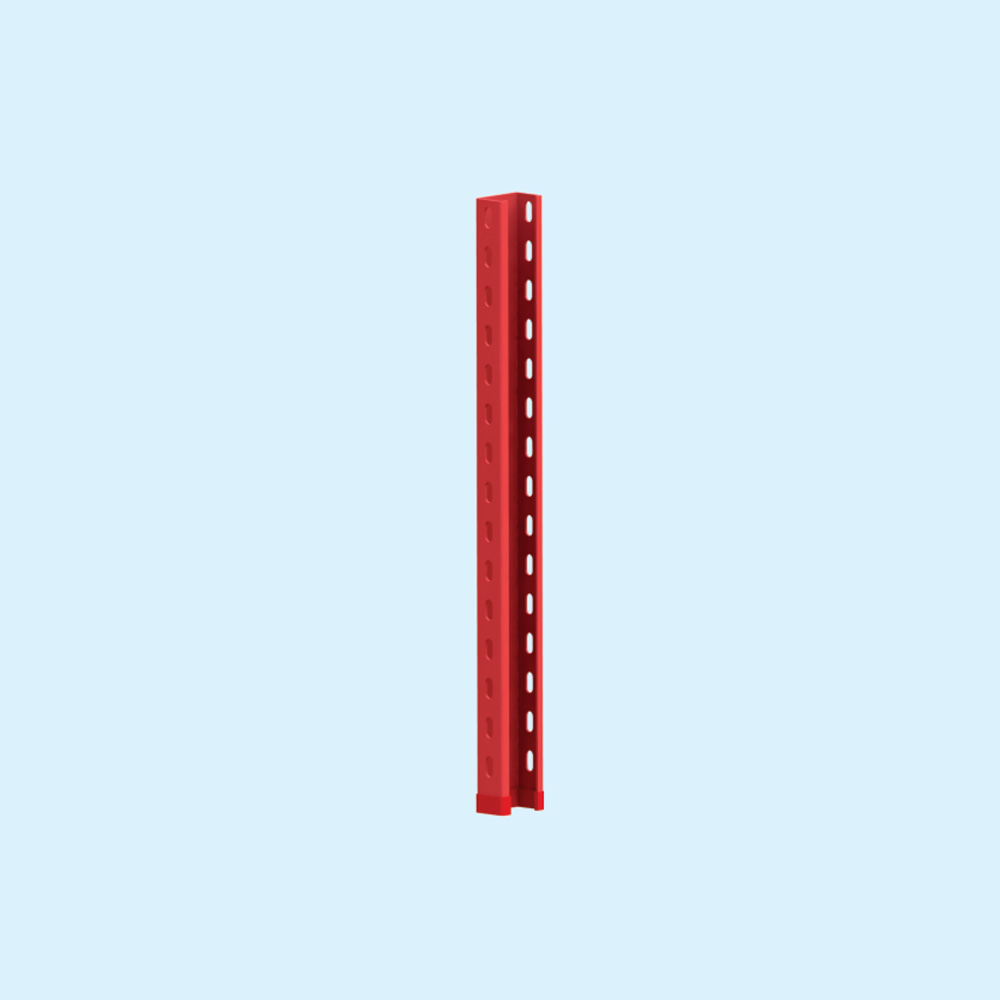

U profile PLASTIFICIZED

U profile is used for vertical mounting of cable trey to ceiling. UD carrier is mounted with four carriage bolt type PEKOM M8X16

Typ	Length L	Dimensions	Thickness	Pack	Article
Typ	mm	mm	mm	pcs	CR
U 5 20 CR	200	50x30	2	10	10110002
U 5 30 CR	300	50x30	2	10	10110003
U 5 40 CR	400	50x30	2	10	10110004
U 5 50 CR	500	50x30	2	10	10110005
U 5 60 CR	600	50x30	2	6	10110006
U 5 70 CR	700	50x30	2	6	10110007
U 5 80 CR	800	50x30	2	6	10110008
U 5 90 CR	900	50x30	2	6	10110009
U 5 100 CR	1000	50x30	2	4	10110010
U 5 150 CR	1500	50x30	2	4	10110011
U 5 200 CR	2000	50x30	2	4	10110012
U 5 300 CR	3000	50x30	2	4	10110013
