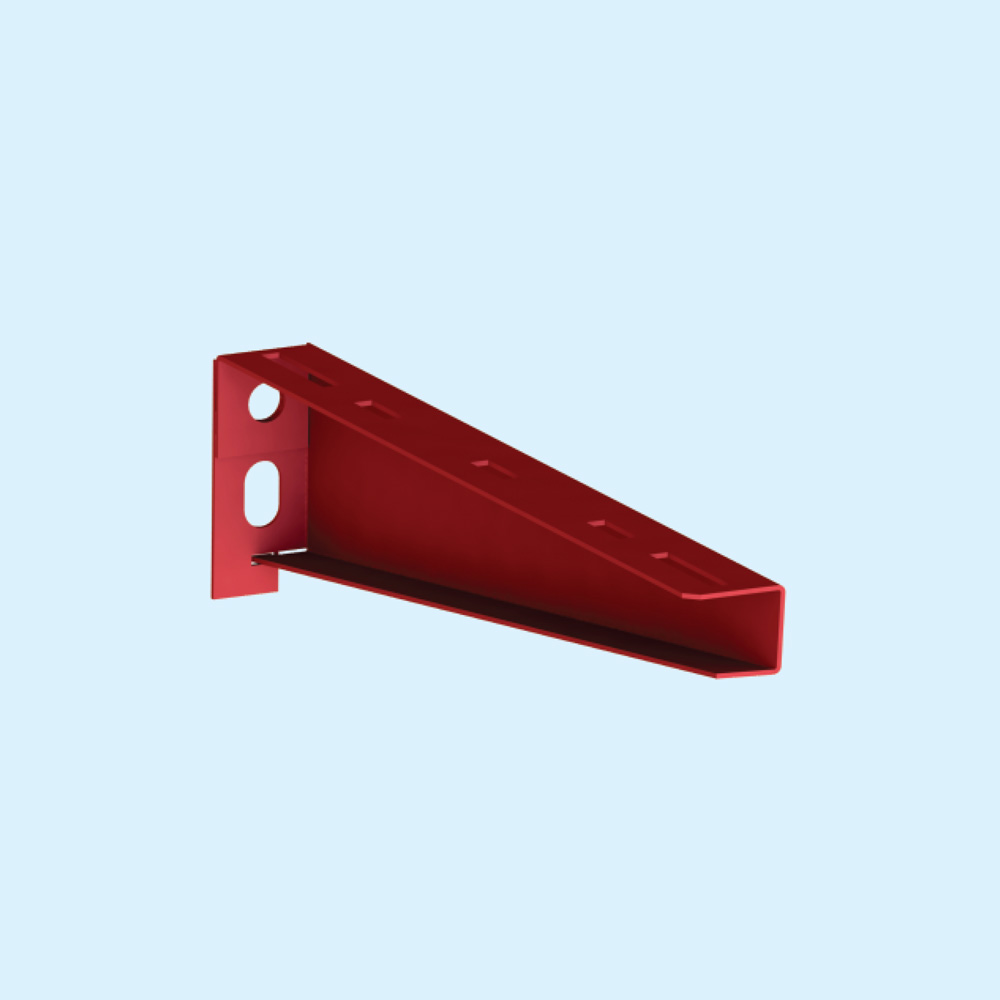

Cantilever PLASTIFICIZED

Wall cantilever. For cantilever instalation on wall we used anchor screw type FBN II. For instalation of cantilever on U pillar we used two carriage screw type PEKOM M8X16. Cable treys are mounted on the cantilever, which are connected with PEKOM 6x12mm carriage screws.

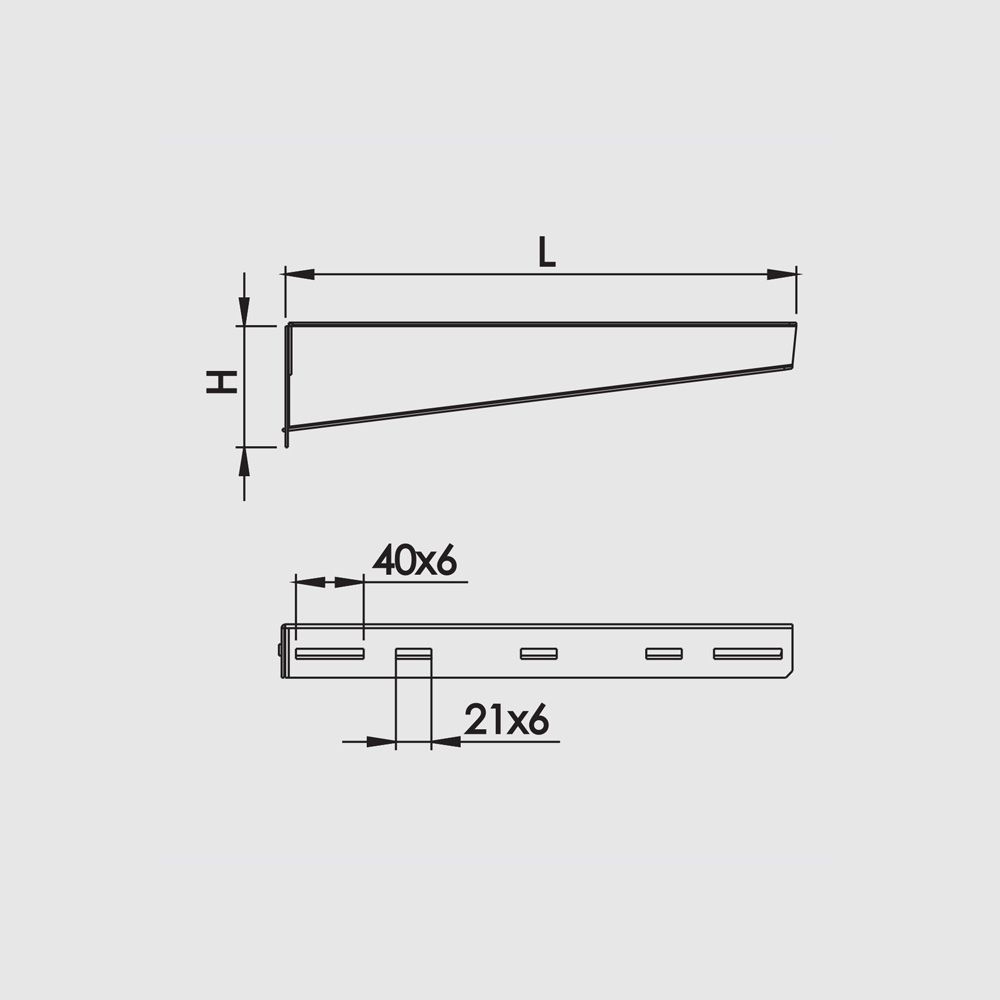

Typ	Length	Height	Thickness	Load	Pack	Article
Typ	mm	mm	mm	kg	pcs	CR
KZ PNK 50 CR	50	60	2	129	10	10110016
KZ PNK 100 CR	100	60	2	130	10	10110017
KZ PNK 160 CR	160	60	2	131	10	10110018
KZ PNK 200 CR	200	60	2	132	10	10110019
KZ PNK 300 CR	300	60	2	128	10	10110020
KZ PNK 400 CR	400	60	2	126	10	10110021
KZ PNK 500 CR	500	93	2	121	10	10110022
KZ PNK 600 CR	600	93	2	118	10	10110023
