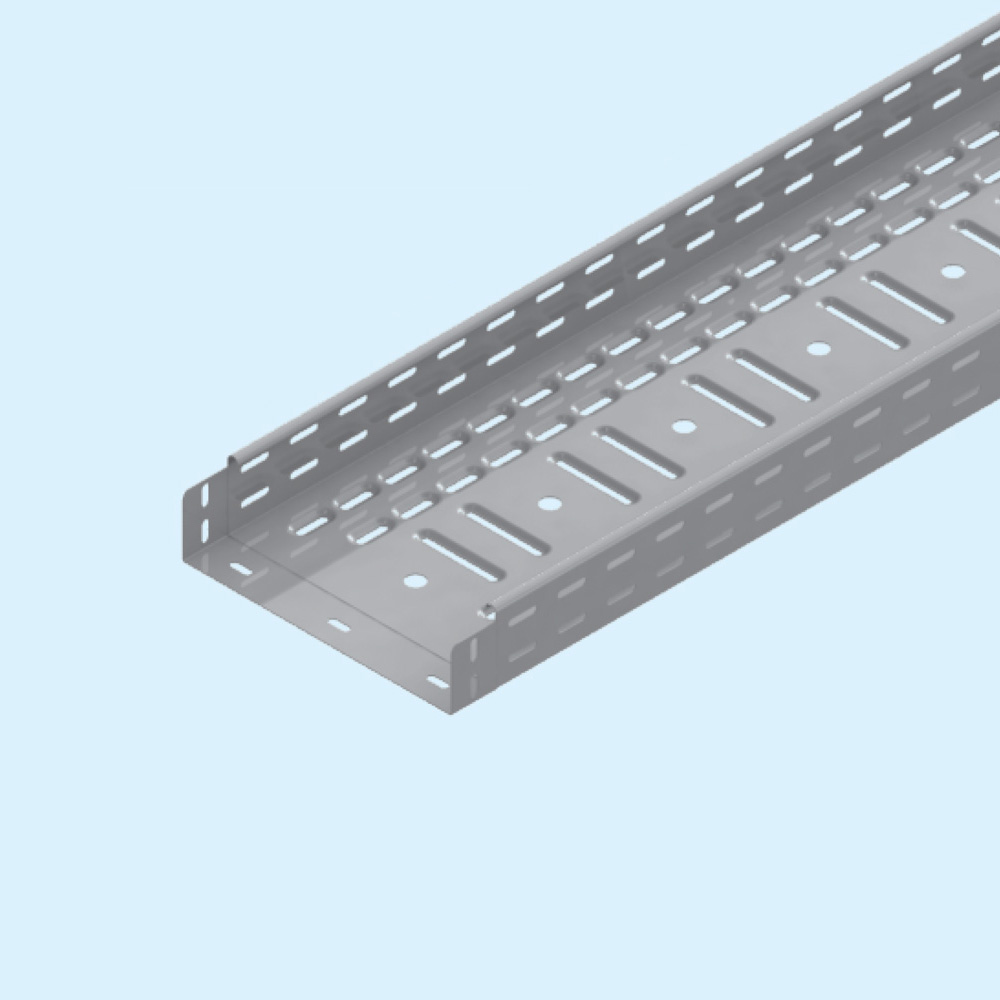

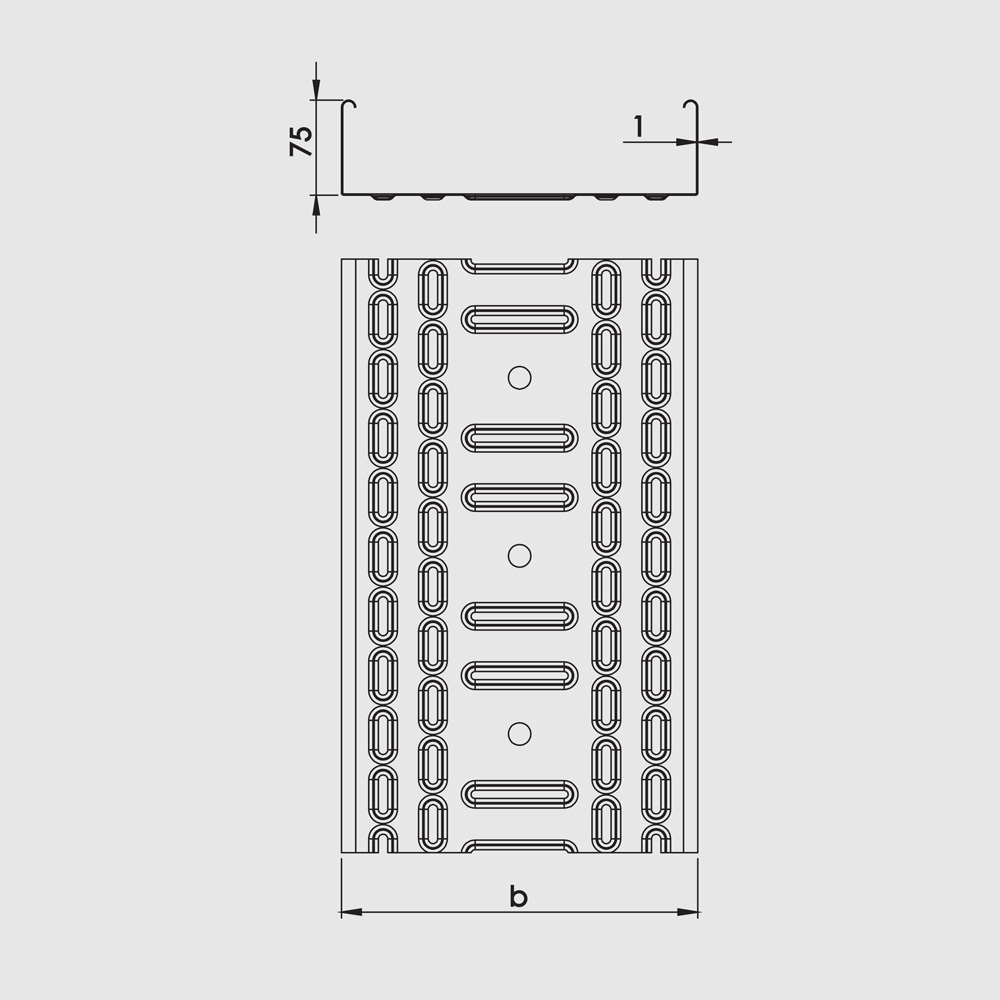

Nosač kablova SNK
| Tip | Širina | Visina | Debljina | Dužina | Korisni presek | Dozvoljeno opterećenje (kg/m) | Šifra artikla | ||
|---|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | cm2 | 1.5m | 2.0m | 2.5m | PL | |
| SNK 7 10 300 PL | 100 | 75 | 1 | 3000 | 70 | 183 | 124 | 58 | 10030315 |
| SNK 7 16 300 PL | 160 | 75 | 1 | 3000 | 110 | 184 | 126 | 52 | 10030316 |
| SNK 7 20 300 PL | 200 | 75 | 1 | 3000 | 140 | 185 | 127 | 55 | 10030317 |
| SNK 7 30 300 PL | 300 | 75 | 1 | 3000 | 210 | 183 | 114 | 51 | 10030318 |
| SNK 7 40 300 PL | 400 | 75 | 1 | 3000 | 280 | 191 | 113 | 51 | 10030319 |
| SNK 7 50 300 PL | 500 | 75 | 1 | 3000 | 350 | 181 | 112 | 52 | 10030320 |
| SNK 7 60 300 PL | 600 | 75 | 1 | 3000 | 420 | 178 | 111 | 52 | 10030321 |
| TC | |||||||||
| SNK 7 10 300 TC | 100 | 75 | 1 | 3000 | 70 | 183 | 124 | 58 | 10020415 |
| SNK 7 16 300 TC | 160 | 75 | 1 | 3000 | 110 | 184 | 126 | 52 | 10020416 |
| SNK 7 20 300 TC | 200 | 75 | 1 | 3000 | 140 | 185 | 127 | 55 | 10020417 |
| SNK 7 30 300 TC | 300 | 75 | 1 | 3000 | 210 | 183 | 114 | 51 | 10020418 |
| SNK 7 40 300 TC | 400 | 75 | 1 | 3000 | 280 | 191 | 113 | 51 | 10020419 |
| SNK 7 50 300 TC | 500 | 75 | 1 | 3000 | 350 | 181 | 112 | 52 | 10020420 |
| SNK 7 60 300 TC | 600 | 75 | 1 | 3000 | 420 | 178 | 111 | 52 | 10020421 |
