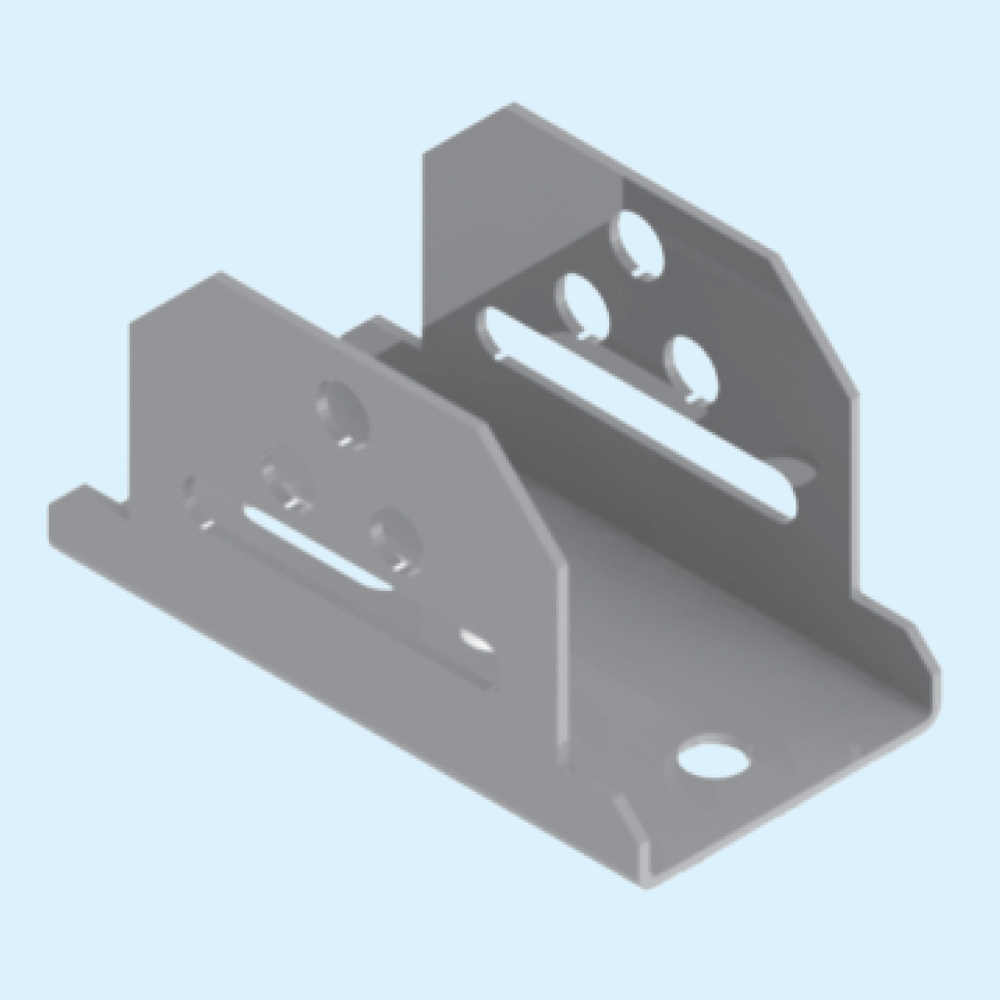

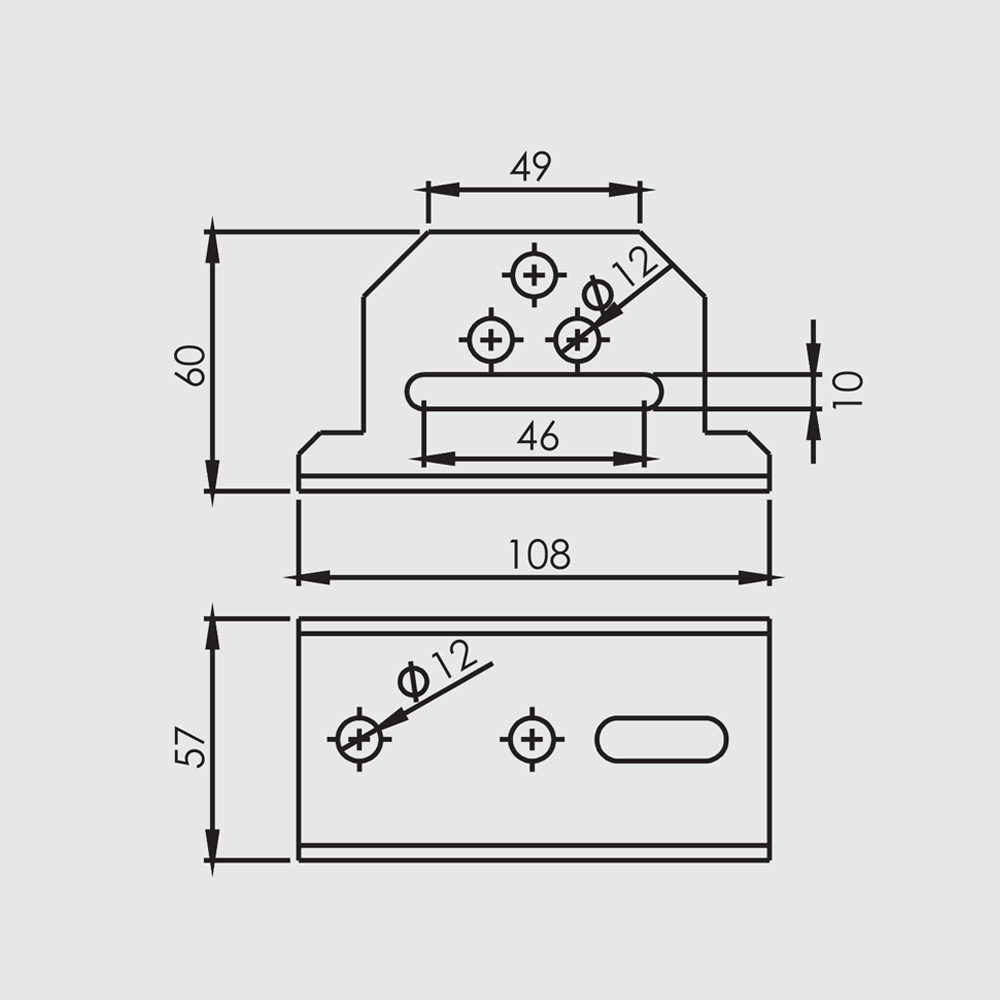

UD carrier for ceilings
When mounting the U profile, a UD bracket is used. The UD bracket is mounted on the ceiling with FAZ II type anchor bolts. The maximum angle of rotation of the U profile is 30 °.
![](/media/catalogProduct/plafonskiUdNosac/Plafonski-UD-nosac.jpg)
![](/media/catalogProduct/plafonskiUdNosac/Plafonski-UD-nosac-s.jpg)
Typ | Thickness | Load | Pack | Article |
---|---|---|---|---|
mm | kg | pcs | PL | |
UD U5 PL | 2 | 611 | 10 | 30010001 |
TC | ||||
UD U5 TC | 2 | 611 | 10 | 30020001 |
